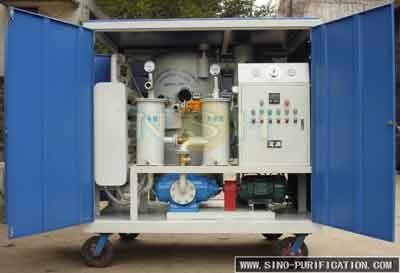

Electric Explosion-Proof Large Capacity 1800L/H Insulation Oil Vacuum Oil Purifier
Advantages:
Compared with single-stage vacuum oil filter, this machine can dehydrate, degassing and deimpurity faster and more thoroughly, the ultimate pressure resistance value of oil is higher, and it can restore the comprehensive indexes such as antioxidant acid, alkali and water solubility of inferior degraded oil
Insulation Oil Purifier Features:
1. Liquid level auto-controlling system.
2. Auto pressure protection system.
3. Steay temperature auto-controlling system.
4. Eletrical auto-protection system to control electric phase, voltage, and overload of pump.
Our Service:
1. 1 years warranty.
2. Provide customers with all technical drawings and materials of equipment purchased for free.
3. Strictly according to customer needs, provide customers with the best oil treatment solutions, provide good performance products.
4. Long-term preferential supply of spare parts
5. Ensure that the equipment provided with perfect processing technology, perfect testing means, equipment performance is good .
6. Long-term free technical consultation, if there is technical innovation, the supplier for users to buy free product system upgrade.
Double-Stage Vacuum Insulation Oil Purifier Technical Parameters:
| Parameters | Value | | |
| VFD-30 | VFD-50 | VFD-75 | VFD-100 | VFD-150 | VFD-200 | VFD-300 |
| Capacity, liters/hour | 1800 | 3000 | 4000 | 6000 | 9000 | 12000 | 18000 |
| Heating Power, kW | 24 | 30 | 48 | 60 | 90 | 120 | 150 |
| Total Power, kW | 29 | 36 | 56 | 69 | 100 | 132 | 170 |
| Power supply | Fully Customizable |
| Inlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 65 |
| Outlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 65 |
Dimensions
(without trailer) | length, mm | 1350 | 1500 | 1550 | 1900 | 2200 | 2400 | 2900 |
| width, mm | 1100 | 1200 | 1250 | 1400 | 1500 | 1600 | 1800 |
| height, mm | 1700 | 1750 | 1800 | 1800 | 1850 | 1900 | 2000 |
| Weight(without trailer), kg | 600 | 800 | 900 | 1150 | 1500 | 1700 | 2400 |
| Processed Oil Spec | Water Content, ppm | ≤5 |
| Dielectric Strength, Kv | ≥75 |
| Filtration Fineness, um | ≤5( or 1-5 as needed ) |
| Gas Content, % | ≤0.1 |
Corollary Equipment-VR Vacuum Pump Set:
SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.
| Parameter | Value |
| VR-30 | VR-70 | VR-150 | VR-300 | VR-600 | VR-900 |
| Capacity, liters/hour | 100 | 250 | 500 | 1000 | 2000 | 3000 |
| Total Power, kW | 3 | 3 | 5 | 7 | 8 | 13 |
| Power supply | Fully Customizable | |
| Maximum Vacuum Range,Pa | 0.06 |
| Outlet Diameter, mm | 32 | 32 | 40 | 40 | 50 | 65 |
| Dimensions | length, mm | 900 | 550 | 1000 | 1200 | 1500 | 1950 |
| width, mm | 800 | 900 | 800 | 800 | 1000 | 1800 |
| height, mm | 1200 | 800 | 1200 | 1200 | 1200 | 1300 |
| Weight(without trailer), kg | 450 | 550 | 600 | 900 | 950 | 1950 |
